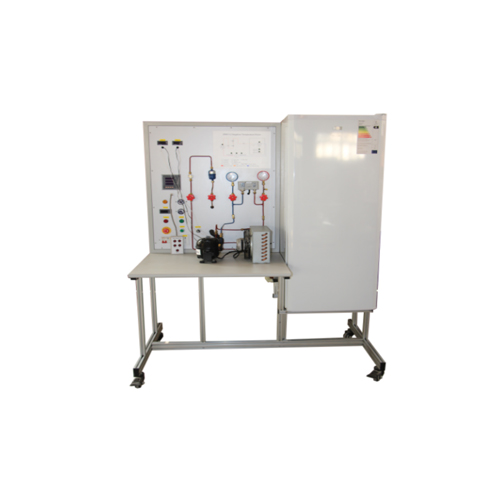

AZM7130 Single Chamber Refrigerator Module Vocational Training Equipment Refrigerator Training Equipment
Auxiliary module with a refrigerator model
Closed chamber with transparent cover cooled by an evaporator
Electrical heater to generate a cooling load
2 expansion elements: expansion valve and capillary tube
Instrumentation: electronic sensors
Operating modes of the unit can be configured via 2 solenoid valves
Electric heating element PTC to generate a cooling load: 210W
Lamellar evaporator with fan, axial fan: 18W,
Max. flow rate: 160m³/h
Capillary tube: length 2m
Measuring range of sensors: – 3x temperature: -40…150°C – 1x pressure: -1…9bar
