Test signals for TV and audio broadcasting – handy and economical

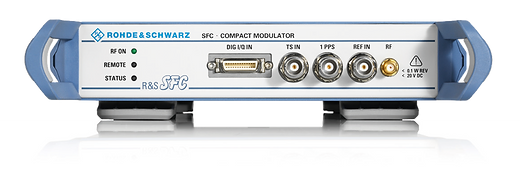

The R&S®SFC compact modulator is an economical multistandard signal source. It supports realtime coding for all conventional digital and analog TV and audio broadcasting standards. The R&S®SFC is equipped with a built-in computer, making it ideal for standalone operation and for integration into a signal generation system with multiple generators.
Key facts
-
High precision modulator with MER > 40 dB
-
VHF and UHF frequency range, optionally up to 3 GHz
-
Level range from 0 dBm to –31.5 dBm, optionally to –110 dBm
-
Terrestrial TV standards: DVB-T2, DVB-T, DVB-H, DTMB, CMMB, T-DMB, ISDB-T, ISDB-TB, ATSC/8VSB, ATSC-M/H
-
Cable TV standards: DVB-C2, DVB-C, J.83/B, ISDB-C
-
Satellite TV standards: DVB-S2, DVB-S, DIRECTV
-
Analog TV standards: B/G, D/K, I, M/N, L
-
Audio broadcasting standards: DAB, DAB+, ISDB-TSB, AM/FM/RDS
-
Integrated transport stream player and analog audio/video generator
-
Transport stream libraries and test pattern libraries supported
-
Integrated AWGN generator
-
ASI transport stream input
-
Digital I/Q input to connect to other Rohde & Schwarz broadcast signal generators
