1. Introduction of RESOLUTION TEST COLLIMATOR?

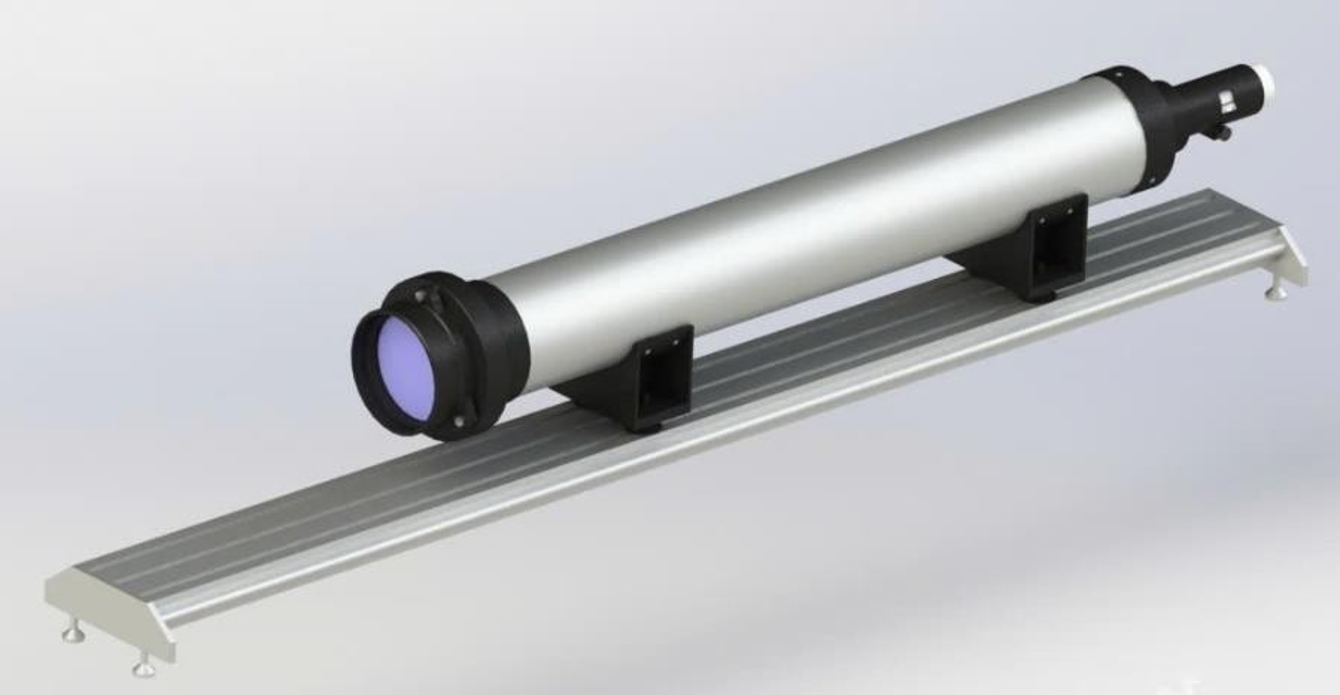

The Resolution Test Collimator is a laboratory-grade optical instrument designed to generate high-quality infinity images for evaluating, calibrating, and aligning optical devices. It projects standard optical resolution targets at optical infinity, enabling accurate assessment of image quality and focusing performance without needing outdoor test ranges. Intended for manufacturers and research facilities, it provides a stable reference for testing imaging equipment like cameras, telescopes, binoculars, optical sights. The instrument features a precision collimating objective, an integrated illuminated target module for high contrast.
2. Typical Applications
The Resolution Test Collimator is suitable for a wide range of optical testing tasks, including:
- Resolution measurement of optical imaging systems
- Infinity focus adjustment
- Optical alignment and boresight verification
- Assembly and production line inspection
- Laboratory evaluation of optical instruments
- Preventive maintenance and repair of optical equipment
- Research and development of precision optical systems
3. Technical Specifications
| Parameter | Specification |
| Focal Length | 1000 mm |
| Field of View | 2° |
| Clear Aperture | 100 mm |
| Resolution Limit | 3 arcsec |
| Resolution Target | USAF 1951 (Groups 0–7) |
| Maximum Target Resolution | 228 lp/mm |
| Target Position Adjustment | 100 mm |
| Target Illumination | Integrated |
